Changsha Daoyuan Wisdom Fluid Technology Co., Ltd.

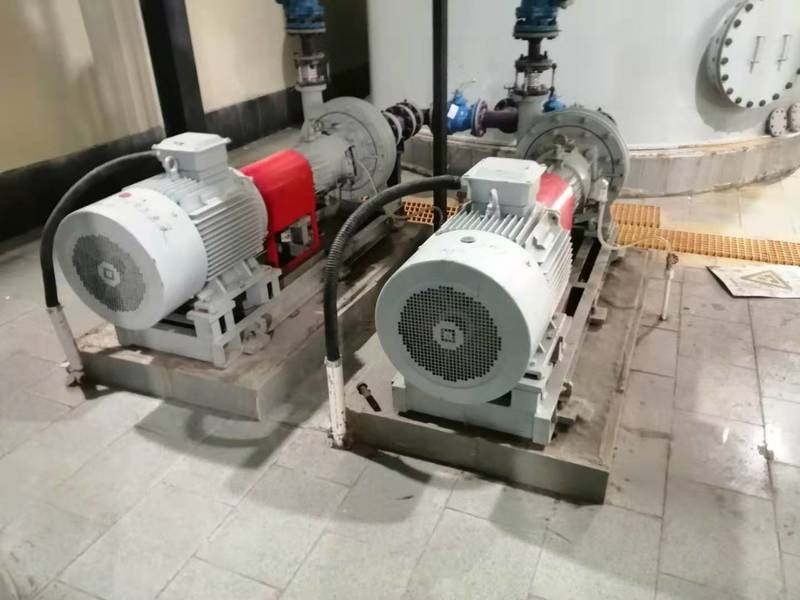

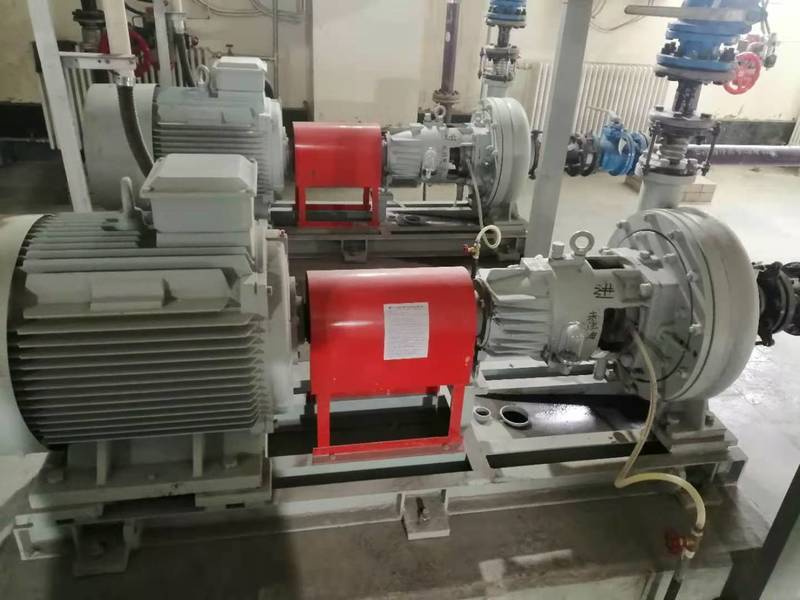

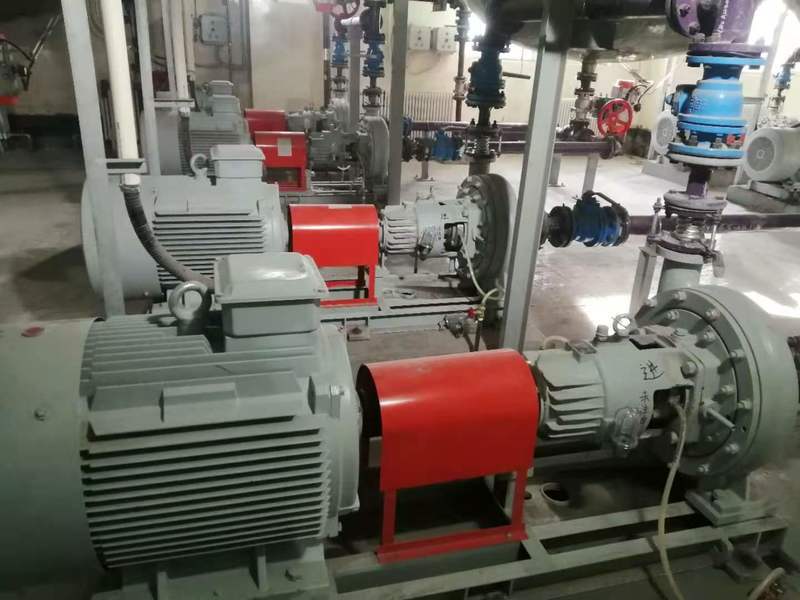

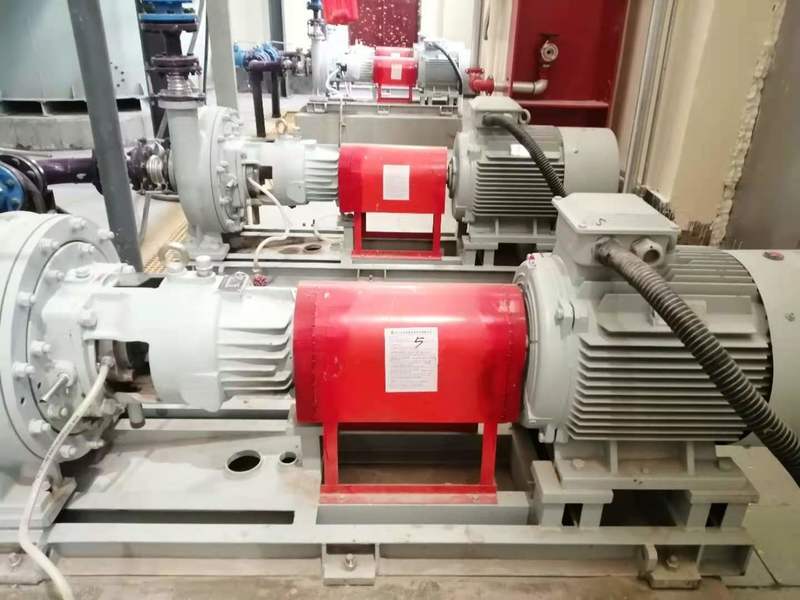

Chifeng Yuntong Nonferrous Metals Co., Ltd. Environmental Upgrade Relocation and Renovation Project Horizontal Alloy Pump

Project Name:Chifeng Yuntong Nonferrous Metals Co., Ltd. Anode Slime Area Horizontal Alloy Pump

Production Start Date:2020

Flow Component Usage Status:Impeller, pump cover for 1 year, pump body for 8 months

Serial Number	Equipment Name	Workstation	Medium Conditions	Equipment Model	Equipment Parameters	Flow Component Material
1	Anode Slime Slurry Filter Pump	S1-2	Temperature: 40-60℃; Medium: Slurry, solid content 15-30%; Sulfuric acid 150-200g/l, density 1.2-1.5t/m3	DYP80-50-450	Reference Power 30KW, Q=30m³/h, H=60m (Clear Water Lift)	CD4MCu
2	Anode Slime Water Washing Filter Pump	S1-5	Temperature: 60-90℃; Medium: Slurry, solid content 25-35%; Sulfuric acid 20-100g/l, density 1.2-1.5t/m3	DYP80-50-450	Reference Power 30KW, Q=30m³/h, H=60m (Clear Water Lift)	CD4MCu
3	Slurry Transport Pump	S1-11	Temperature: 80-95℃; Medium: Slurry, solid content 25-35%; Sulfuric acid 120-200g/l, density 1.2-1.5t/m3	DYP80×50	Reference Power 15KW, Q=45m³/h, H=30m (Clear Water Lift)	CD4MCu
4	Pressurized Leaching Filter Pump	S1-17	Temperature: 80-95℃; Medium: Slurry, solid content 25-35%; Sulfuric acid 120-200g/l, density 1.2-1.5t/m3	DYP80-50-450	Reference Power 30KW, Q=30m³/h, H=60m (Clear Water Lift)	CD4MCu
5	First Water Washing Filter Pump	S1-22	Temperature: 60-80℃; Medium: Slurry, solid content 25-35%; Sulfuric acid 50-100g/l, density 1.2-1.5t/m3	DYP80-50-450	Reference Power 30KW, Q=30m³/h, H=60m (Clear Water Lift)	CD4MCu
6	Second Water Washing Filter Pump	S1-27	Temperature: 60-80℃; Medium: Slurry, solid content 25-35%; Sulfuric acid 5-20g/l, density 1.2-1.5t/m3	DYZE40-250 (2950)	Reference Power 75KW, Q=30m³/h, H=90m (Clear Water Lift)	CD4MCu
7	Silver Settling Filter Pump	S1-31	Temperature: 70-90℃; Medium: Slurry, solid content 1-5%; Sulfuric acid 120-200g/l, density 1.2-1.3t/m3	DYZE50-450	Reference Power 15KW, Q=30m³/h, H=50m (Clear Water Lift)	CD4MCu
8	Selenium Settling Filter Pump	S1-36	Temperature: 70-90℃; Medium: Slurry, solid content 1-5%; Sulfuric acid 120-200g/l, density 1.2-1.3t/m3	DYZE50-450	Reference Power 15KW, Q=30m³/h, H=50m (Clear Water Lift)	CD4MCu
9	Tellurium Settling Filter Pump	S1-41	Temperature: 70-90℃; Medium: Slurry, solid content 1-5%; Sulfuric acid 120-200g/l, density 1.2-1.3t/m3	DYZE50-450	Reference Power 15KW, Q=30m³/h, H=50m (Clear Water Lift)	CD4MCu
10	Purification Filter Pump	S2-25	Temperature: 50-80℃; Medium: Slurry, solid content 1-5%; PH around 5, density 1.2-1.3t/m3	DYZE100-450 (Lift Deviation)	Reference Power 45KW, Q=50m³/h, H=80m (Clear Water Lift)	CD4MCu
11	Selenium Reduction Filter Pump	S2-30	Temperature:70-90℃; Medium: Slurry, solid content10-20%; Sulfuric acid120-200g/l, selenous acid50-80g/L density1.2-1.3t/m3	DYP80-50-450	Reference Power45KW,Q=45m³/h, H=80m (Clear Water Lift)	CD4MCu
12	Coarse Selenium Washing Slurry Hydraulic Filter Pump	S2-39	Temperature:70-90℃; Medium:Slurry, solid content15-30%; Sulfuric acid120-200g/l,slenous acid50-80g/L,density1.2-1.4t/m3	DYP80-50-450	Reference Power45KW,Q=25m³/h, H=80m (Clear Water Lift)	CD4MCu
