Modular floating platform


The high molecular weight and high density HDPE module is used as the carrier of the system platform, and then the steel equipment installation platform is built on it to become a floating water intake system, which is a new type of equipment that can efficiently transport media without the change of water level, river bed movement and geographical environment restrictions such as mountains and mountains.

Category:

Floating platform



Product Overview

The high molecular weight and high density HDPE module is used as the carrier of the system platform, and then the steel equipment installation platform is built on it to become a floating water intake system, which is a new type of equipment that can efficiently transport media without the change of water level, river bed movement and geographical environment restrictions such as mountains and mountains.



Product Features

Simple structure, light equipment, short construction period; Water intake of equipment is balanced, stable, safe and reliable; It adopts module structure, convenient transportation and simple installation.



Structure composition

It is composed of float, water pump, lifting maintenance device, valve and outlet pipe, lighting system, anchoring system, local control cabinet, PLC remote intelligent control system, etc.;



More practical

♦ Antiline agent

♦ Cold resistance

♦ Antioxidant

♦ High temperature resistance

♦ Antistatic agent

♦ Acid and alkali corrosion resistance



Main Application

Domestic and industrial water diversion in lakes, reservoirs, tailings ponds, drought-resistant water intake, farmland 灈, etc. Advanced product technology, wide range of adaptation, obvious economic benefits



Main buoy performance parameters

♦ Float unit specifications: 500x500x400mm

♦ Buoy unit standard weight 7kg(± 0.2 kg) < / p >

♦ Combined bearing buoyancy: 350kg/m2

♦ Float material: High molecular weight high density HDPE

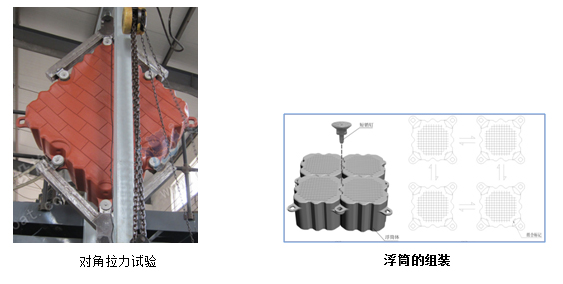

♦ Pulling force on buoy ear: 1.6~1.8 tons

♦ Tensile yield stress: > 27MPa

♦ Tensile fracture stress: > 40MPa

♦ Elongation at break: > 800%

♦ Bending modulus: > 1150MPa

♦ Vica softening temperature: 127℃

♦ Low temperature embrittlement temperature: < -76℃

♦ Resistance to general acid and alkali (except strong acid and alkali with PH value outside 2-10), solar Uv irradiation

♦ Environmentally friendly material, no toxic chemicals (such as Dioxin)

♦ Can withstand more than 15 years under normal use (no external force special stab, cut)

♦ The buoy can be disassembled at any time, reassembled, changed many times using the platform, easy assembly
