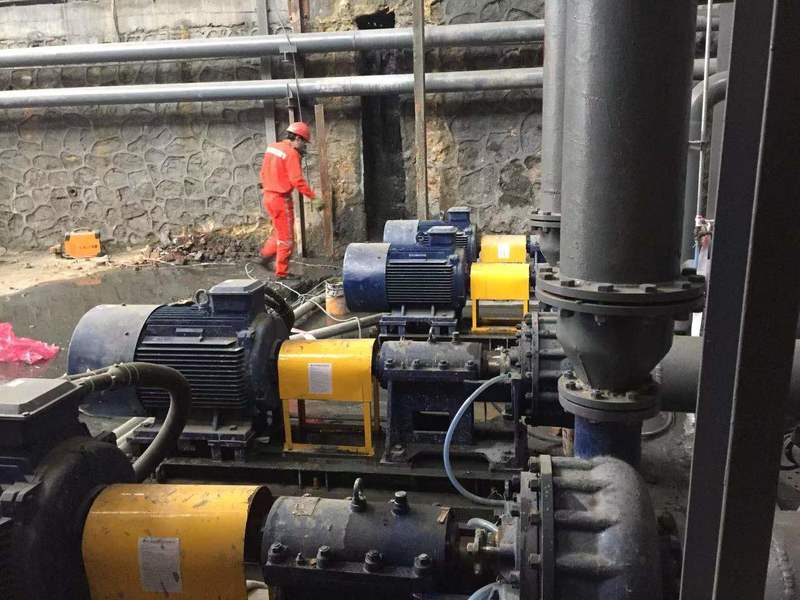

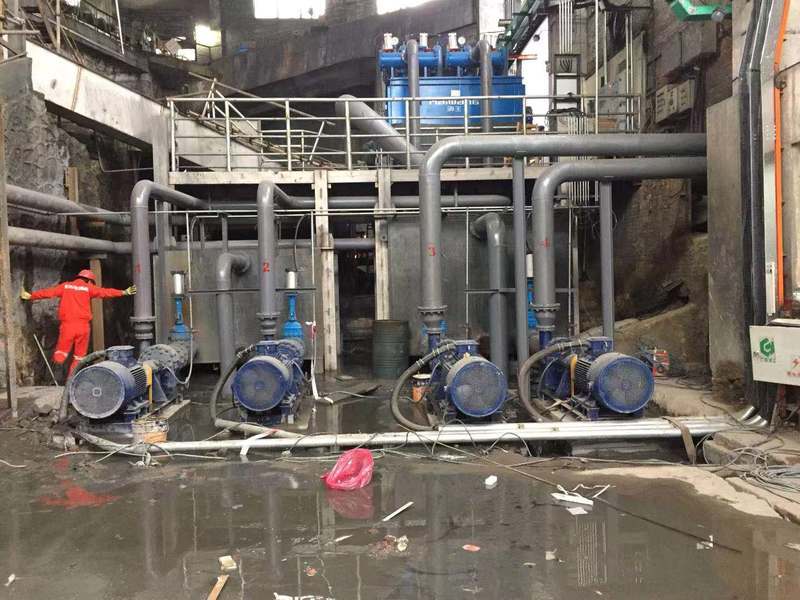

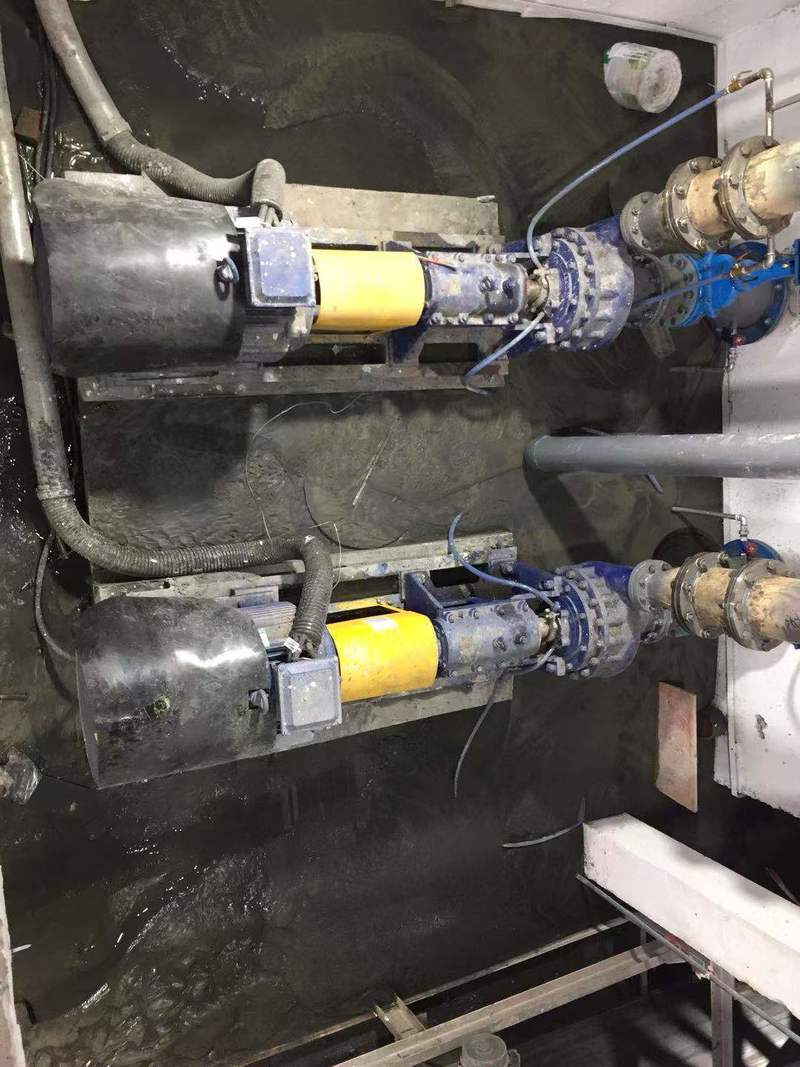

Shenzhen Zhongjin Lingnan Nonferrous Metals Co., Ltd. Fankou lead-zinc mine
Project name: Shenzhen Zhongjin Lingnan Nonferrous Metals Co., LTD. Fankou lead-zinc Mine
Production time: Supplied
Usage of overflow parts: impeller, pump cover 1 year, pump body 8 months
|
Serial number |
Device name |
Station |
Medium conditions |
Equipment model |
Equipment parameters |
Material of overcurrent component |
|
1 |
Slurry pump |
Washing plant |
Pulp concentration: 26.4% Pulp specific gravity: 1.247t/m³ Max particle: 2mm Ore density: true density 3.8-4, loose density: 2.375-2.5 |
DYP125*100-L |
Q: 192.62-250.41 m&sup 3; /h |
Cr26+ lining ceramics |
|
2 |
Fine second stage dewatering screen 2# slurry pump |
Washing plant |
Pulp concentration: 10.2% Pulp specific gravity: 1.083t/m³ Max particle: 1mm Ore density: true density 3.8-4, loose density: 2.375-2.5 |
DYP150*125-LA |
Q = 376.2-489.06 m&sup 3; /h H: 27m |
Cr26+ lining ceramics |
|
3 |
Coarse cyclone feed 3# slurry pump |
Sifting and washing plant |
Pulp concentration: 7% Pulp specific gravity: 1.1t/m³ Max particle: 2mm Ore density: true density 3.8-4, loose density: 2.375-2.5 |
DYP125*100-L |
Q: 168-218.4 m&sup 3; /h |
Cr26+ lining ceramics |
Project name: Shenzhen Zhongjin Lingnan Non-Ferrous Metals Co., LTD. Fankou Lead and zinc mine fine tailings full recycling feed pump
Production time: Already ordered
Usage of overflow parts: impeller, pump cover 1 year, pump body 8 months
|
Serial number |
Device name |
Station |
Medium conditions |
Equipment model |
Equipment parameters |
Material of overcurrent component |
|
1 |
Two-stage cyclone feed pump |
Washing plant |
Feed concentration: 13.75% Pulp volume: 355.0m3/h Feed pulp density: 1.10t/m3 Feed size: -10um accounts for 65% |
DYP150X125 |
Q:380m³ /h |
Cr26 |
